CTS Cap Torque Tester (1 N.m – 20 N.m).

$720.00$830.00

CTS Cap Torque Tester
Available in capacities from 1 N.m to 20 N.m
(Please select capacity from dropdown list)

SKU: NTCTST001 Category: Tags: ,

The CTS Cap Torque Tester is ideal for torque testing and setting bottle caps. It can also be used for torque testing of any parts or materials using clamping. The device operates in Track and Peak Mode.

  • Holds bottles or jars from 12 to 160mm (0.5-6.3 inches) in diameter
  • Durable all-metal body construction
  • 0.5% accuracy at peak capacity
  • Stores up to 500 test records in internal memory
  • Large menu-driven graphics LCD
  • Free PC software for data download available from our website

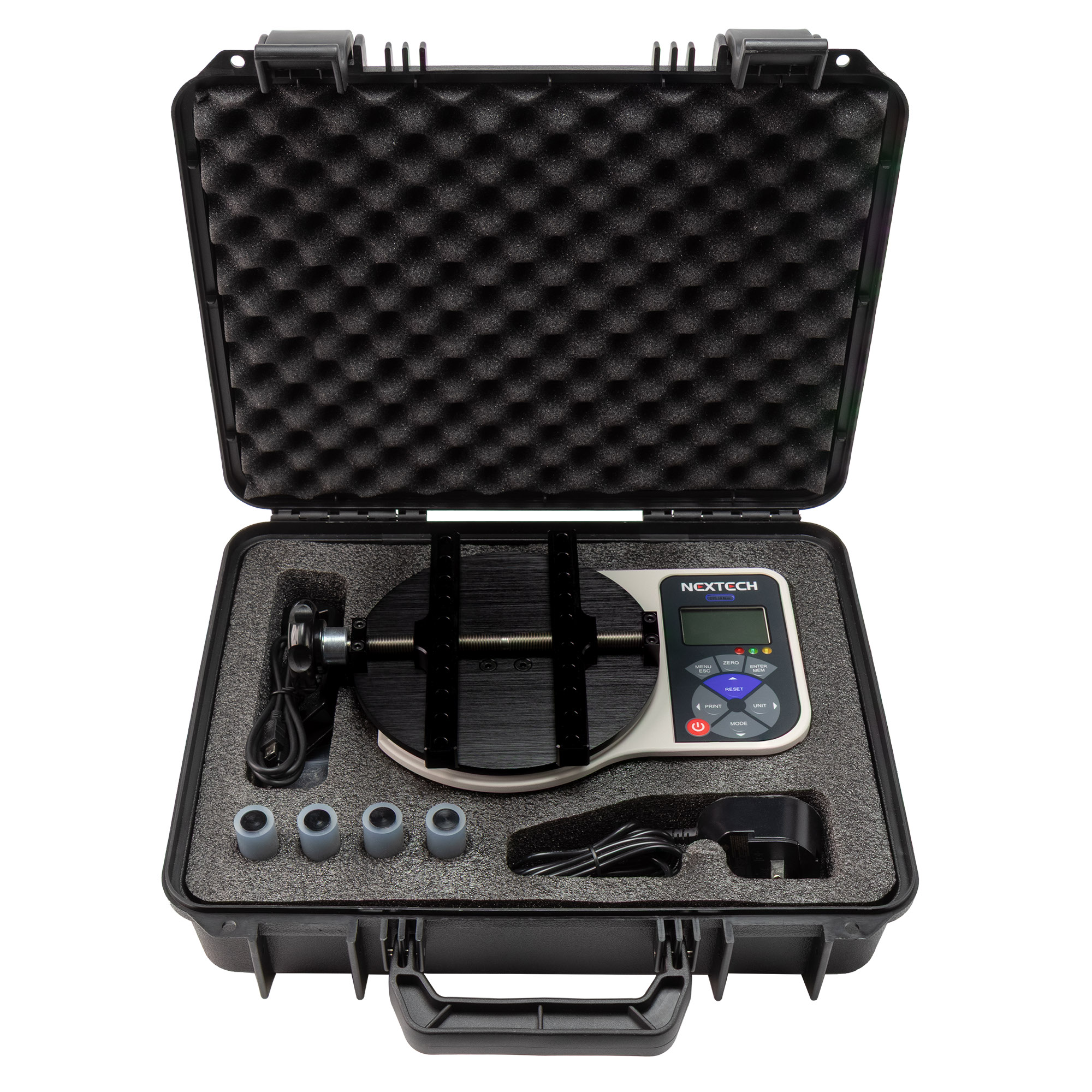

  • Complete set with carrying case, US-style plug 100-240V charger, USB cable, and printed manual
  • Calibrated at five torque load points. Calibration certificate included

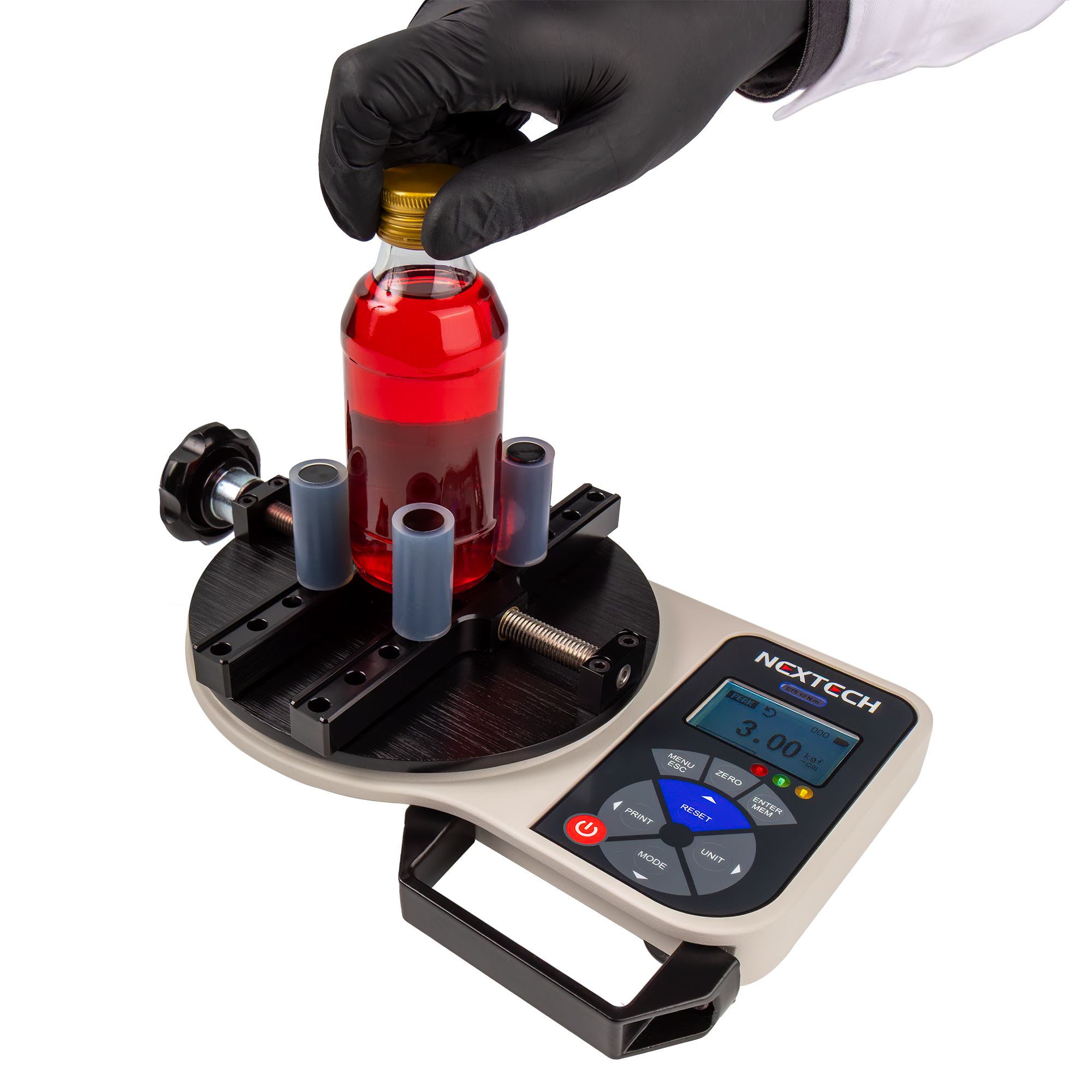

The CTS digital cap torque gauge is a cost-effective testing tool featuring a solid metal housing and a large backlit graphics LCD. It is suitable for measuring the tightening torque of caps on jars or bottles.

Cycle through different units of measurement with one button. Select from three modes of operation: Track mode for live readings, and two peak modes (clockwise and counterclockwise) that record the maximum value during the test.

The CTS gauge is ready to use without additional setup. For advanced configurations, the simple English menu allows you to customize the instrument to your requirements.

In Pass/Fail mode, you can set upper and lower limits for your test, with visual and audible indications for pass or fail results.

The instrument can store several hundred readings at the push of a button. Review stored data on the device screen or download it to a computer via USB. A free Windows-based software program and USB cable for PC connectivity are provided.

This advanced torque gauge is suitable for both simple and professional applications.

Additional information

WeightN/A
Capacity

20 N.m / 2 kgf.m / 14.75 lbf.ft, 10 N.m / 1 kgf.m / 7.38 lbf.ft, 5 N.m / 0.5 kgf.m / 3.69 lbf.ft, 1 N.m / 0.1 kgf.m / 0.74 lbf.ft

Accuracy

0.5% at full capacity

Force

Rotational (clockwise, counterclockwise)

Modes

Tracking, Peak Clockwise, Peak Counterclockwise

Diameter Range

12 mm – 160 mm (0.5 in – 6.3 in)

Memory

Up to 500 records

Display

Graphics LCD (menu driven)

Connectivity

USB serial with free software download

Battery

Internal NiMH, rechargeable

Material

Metal
