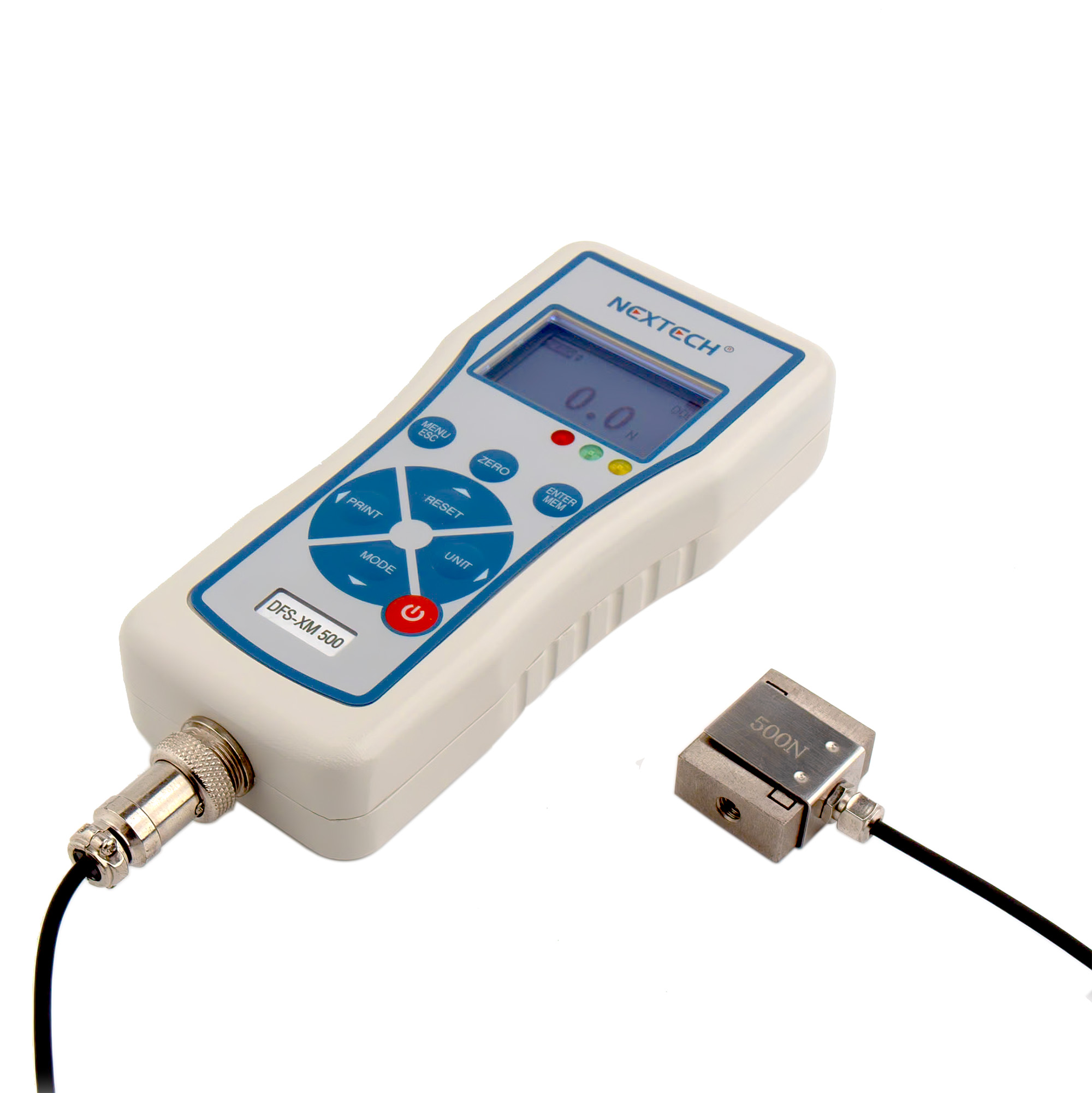

DFS-XM Force Gauge with External Micro-SBeam Load Cell (100 N – 500 N).

$450.00

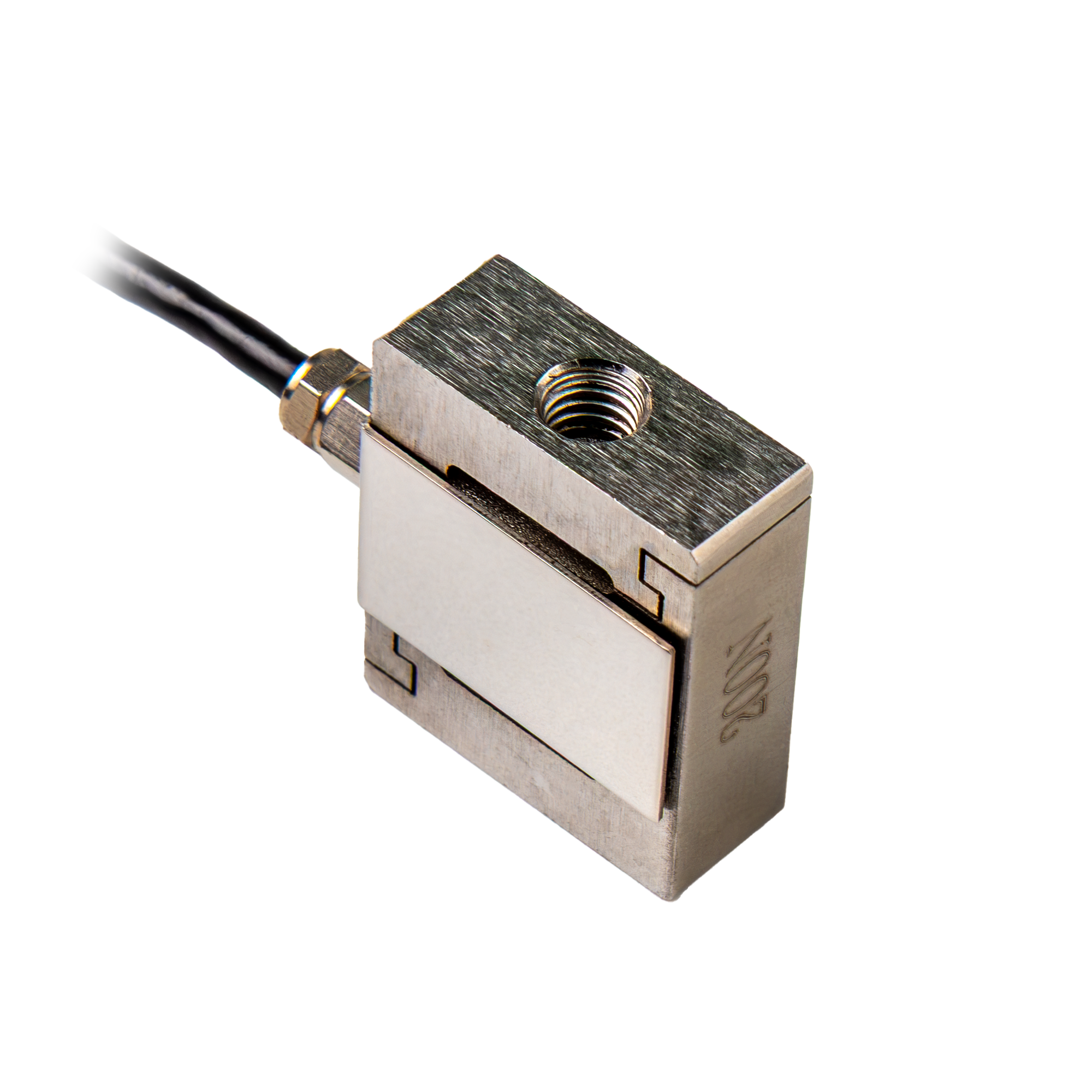

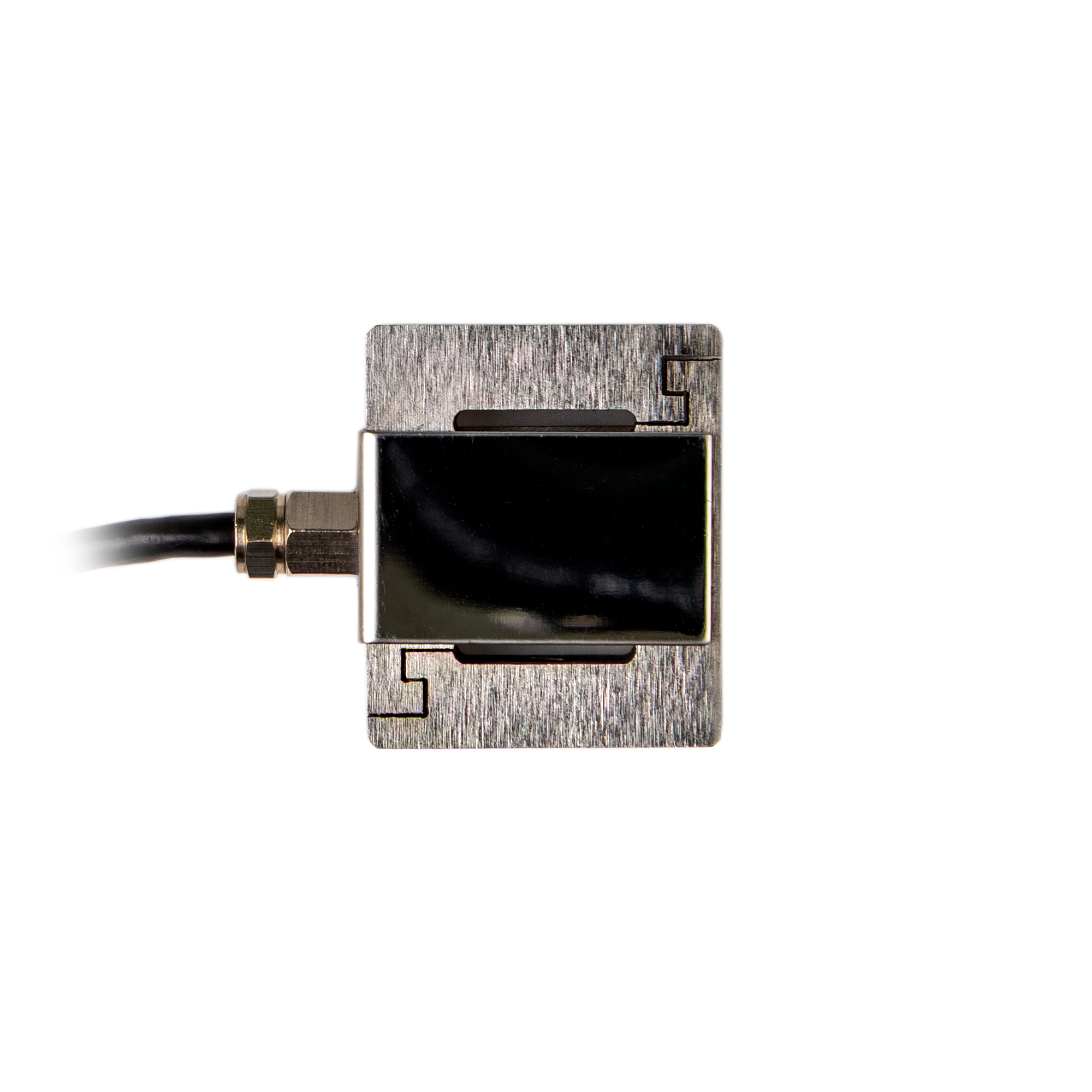

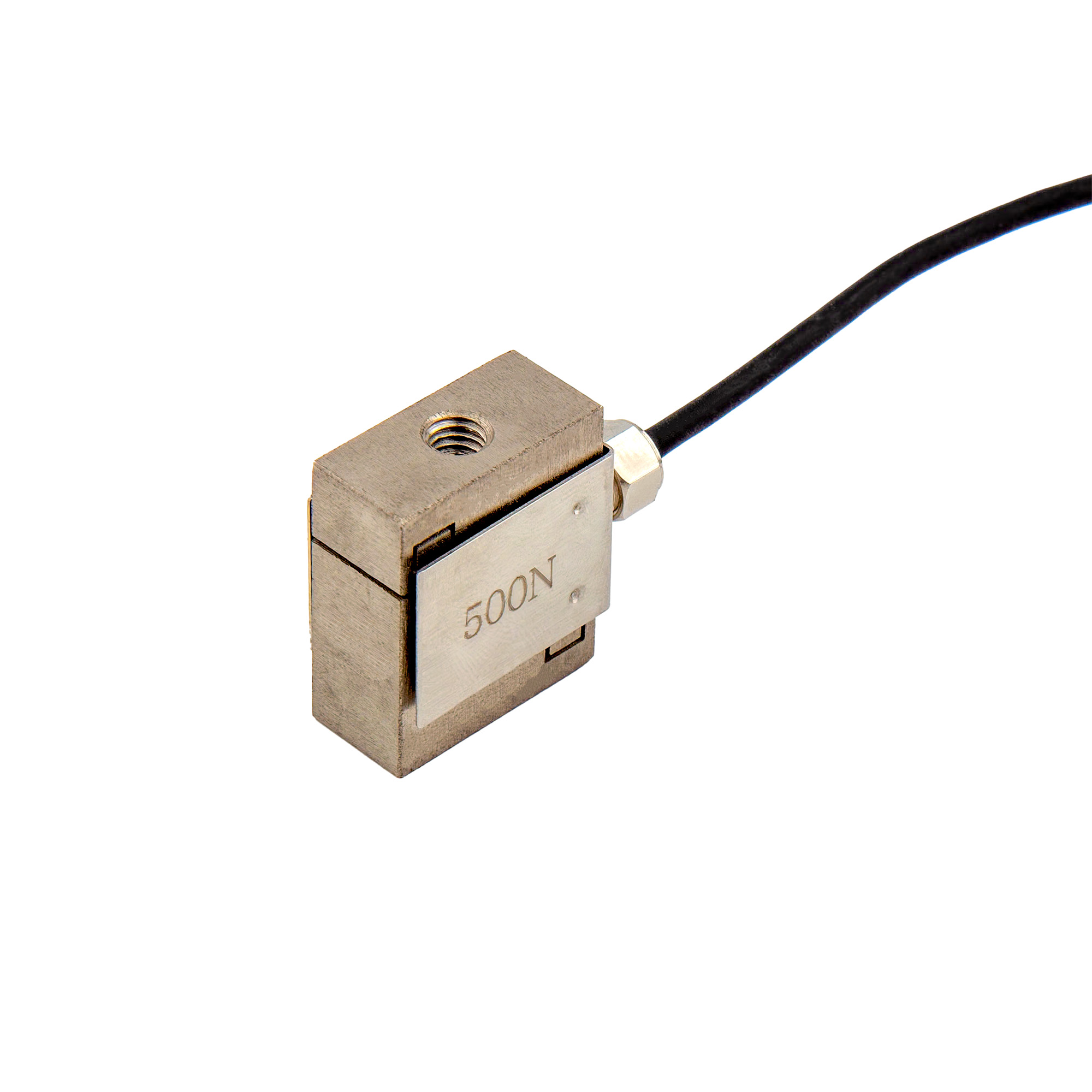

DFS-XM Force Gauge with External Micro-SBeam Load Cell
Available in capacities from 100 N to 500 N
(Please select a capacity from dropdown list)

SKU: NTDFSX002 Category: Tags: , , ,

Introducing the DFS-XM Force Gauge coupled with the precision of an External Micro-SBeam Load Cell. Engineered for spaces where every millimeter counts, this compact load cell is a powerhouse of functionality, enabling both tension and compression measurements with unparalleled ease.

  • Exceptional accuracy within 0.2% of FS (Full Scale).
  • Designed for tension and compression load analysis with advanced Peak Hold and Track Modes.
  • Capable of storing up to 500 readings in its internal memory for review or download.
  • Features a durable metal enclosure with multiple mounting options for versatile applications.
  • Equipped with an internal rechargeable NiMH battery for extended, uninterrupted usage.
  • Incorporates a 2-meter cable for flexible connectivity between the gauge and load cell.
  • Includes a menu-driven digital graphic LCD with a bright white backlight for clear visibility.
  • Comes with a free downloadable 'NexGraph' PC software for advanced force-time analysis.

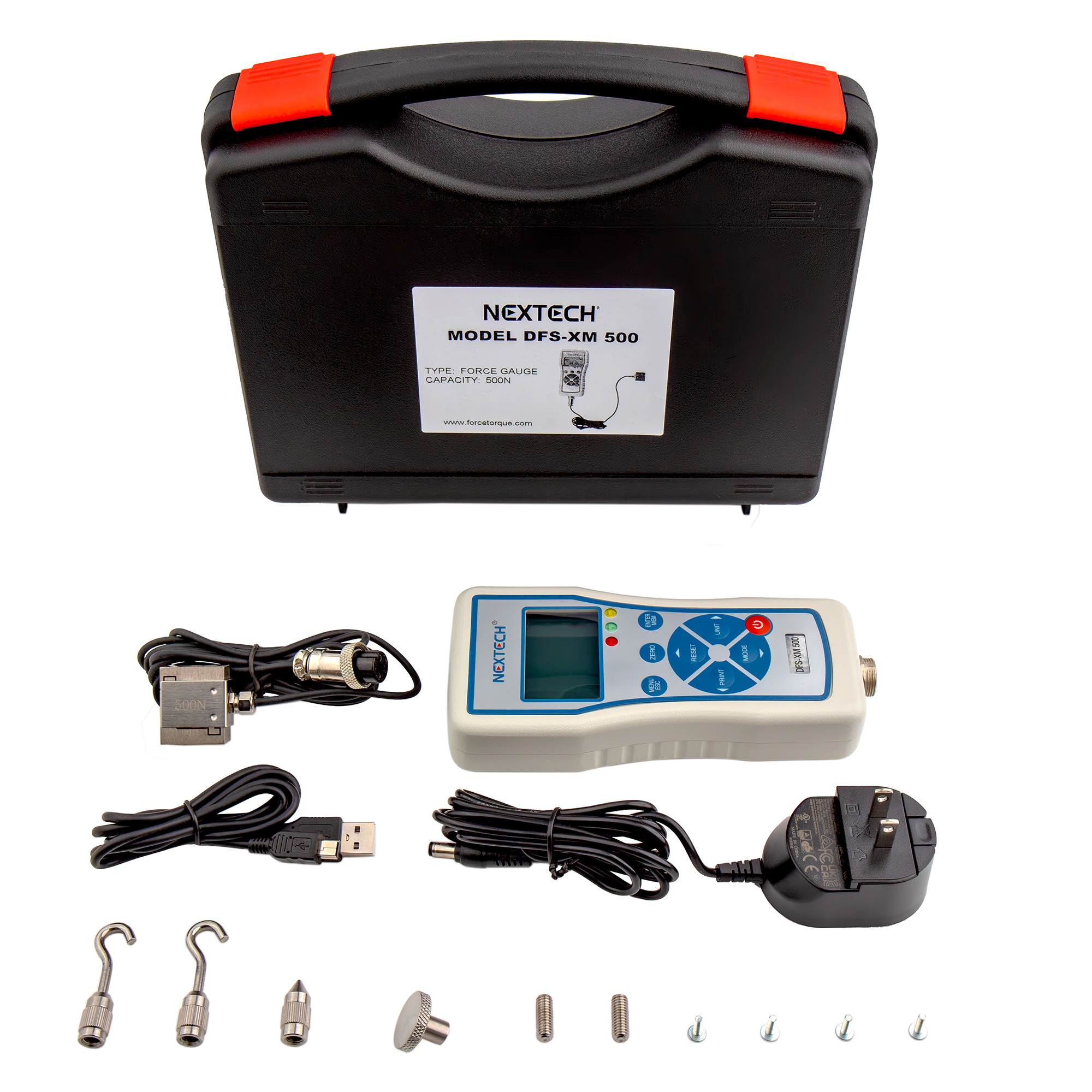

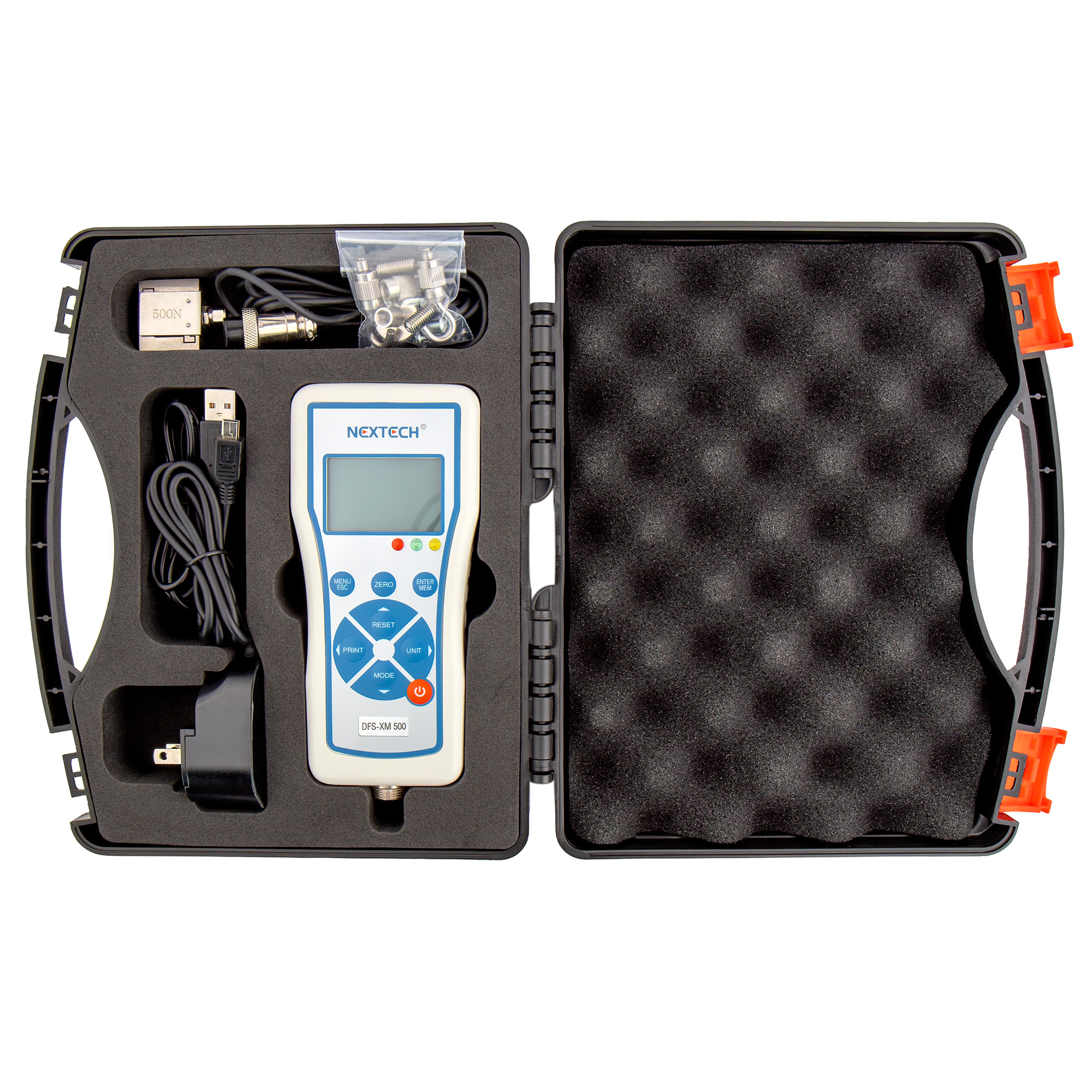

  • Arrives as a complete set with a protective carrying case and charger.
  • Each unit includes a calibration certificate from a traceable standard for assured accuracy.

The DFS-X Series digital force gauges are your economical choice for rigorous tension and compression testing. With external transducers that fit into tight spaces and allow for remote monitoring, these gauges are encased in a solid metal housing with a large, backlit LCD that's easy to read and handle.

Switch between different units of measurement with a single button press. Select from three operational modes: Track, Peak Compression, and Peak Tension, to capture live readings or record maximum forces. The intuitive English menu simplifies advanced configurations, making the gauge ready for immediate use or tailored setups.

Enhance testing efficiency with the Pass/Fail mode, which offers immediate visual and auditory feedback on test outcomes based on your predefined limits. Store and recall up to 500 readings with a simple button press, and later, analyze the data on-screen or export it via USB to a computer.

Our advanced DFS-X Series gauges, ranging from 1.1 to 6,600 lb, are equipped to handle a broad spectrum of testing capacities for diverse applications. The gauge's large backlit LCD, housed in a sturdy metal frame, ensures optimal readability and a comfortable grip for any testing position. With the ability to invert the display, you can always have the best view of your measurements.

Operation is intuitive: cycle through various measurement units with ease, and choose from three modes: Track, Peak Compression, and Peak Tension, to suit your testing needs. The gauge is ready to go right out of the box, but for those who require more specific settings, a straightforward English menu allows for detailed customization.

With the DFS-XM Force Gauge, you're not just measuring force; you're ensuring accuracy and reliability in every test. It's the advanced tool that accommodates both straightforward and complex applications with professional-grade performance.

Note: Load Cells are calibrated with the gauge as a set. They are replaceable but must be recalibrated each time to ensure accuracy. Any capacity or style of load cell, including models XL, XJ, XM, XP, and XB, can be interchanged and recalibrated for accurate use.

Additional information

WeightN/A
Capacity

500 N / 50 kgf / 110 lbf, 200 N / 20 kgf / 44 lbf, 100 N / 10 kgf / 22 lbf

Accuracy

0.2% at full capacity

Force

Tension and Compression

Modes

Tracking, Peak Tension, Peak Compression

Cable

2 meters

Memory

Up to 500 records

Display

Graphics LCD (menu driven)

Connectivity

USB serial with free software download

Battery

Internal NiMH, rechargeable

Material

Metal
